 Piston Air Compressor Home > products > Piston Air Compressor




We can help you find the most suitable machines for your needs.

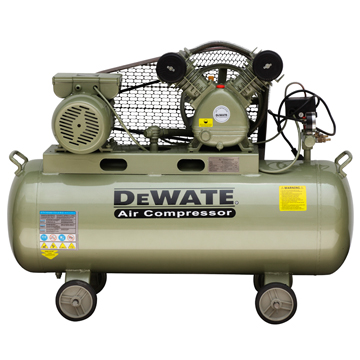

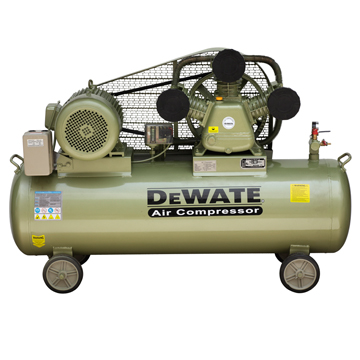

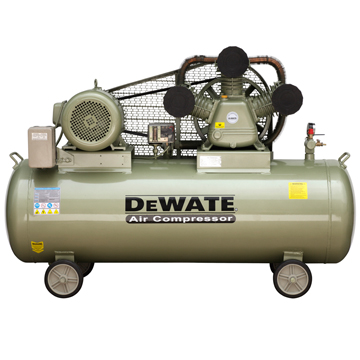

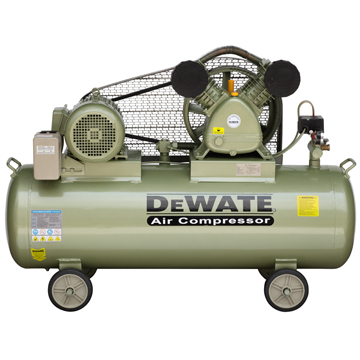

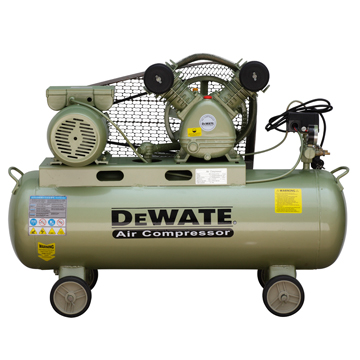

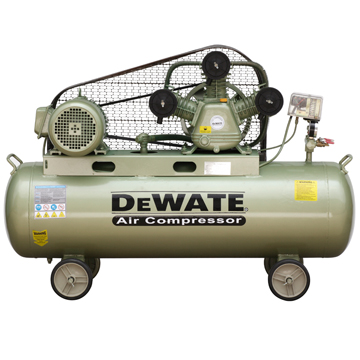

Piston air compressor or reciprocating air compressors use pistons driven by a crankshaft.This means they are taking in successive volumes of air which is confined within a closed space and elevating this air to a higher pressure.The piston air compressor accomplishes this by a piston within a cylinder as the compressing and displacing element.

Built with the care and attention to detail that sets all DWT series compressors apart from the competition,all our models are factory tested before shipment.Single-stage and two-stage reciprocating compressors are commercially available.

Applications of the Piston Air Compressor
Our rugged and reliable piston air compressors are ideally suited for the light industrial,commercial or professional user and are widely used in textile,medical,pharmaceutical,electronic,pneumatic reinforcement-blowing,sandblasting,and other places requiring compressed air.

Features of the Piston Air Compressor
1.The piston air compressor can be continuously operated for 16 hours.
2.It is reliable,easy to install and economical.
3.The piston air compressor has a cast iron compressor pump,totally enclosed belt guard,and industrial grade motors.
4.It has an automatic unloading device that matches output to system requirements to reduce power consumption costs.
5.The piston air compressor is designed to operate with low speed.
6.It uses the most popular design in the market,and it is mature,reliable and easy to maintain.
7.It offers a simple structure,high efficiency and is cost=effective.
8.The piston air compressor is made with top quality material and has exquisite workmanship.
9.It offers a powerful head design,low speed,stroke length and longer service life than the similar products.
10.It adopts the ring valve design and the valve material imported from Japan and Sweden,which greatly increases the performance and service life of air valve.
11.The piston air compressor uses a piston ring from Taiwan Riken that is durable and non-oil.
12.The crank shaft by high-frequency quenching,enhances the wear resistance of the product.
13.The oil separator structure design of the front cover offers low fuel consumption and in the long term keeps the body clean.
14.In volume control,there are gas and electronic automatic control types,gas and electronic dual-use type,and four types of intelligent control.Depending on the gas situation,it will automatically switch between electric control and pneumatic control.
15.The piston air compressor is CE certified,and is manufactured under ISO standard.So customers can feel secure in placing orders.
16.We offer a one year full machine warranty.

Components of the Piston Air Compressor

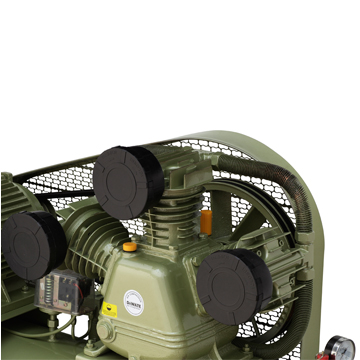

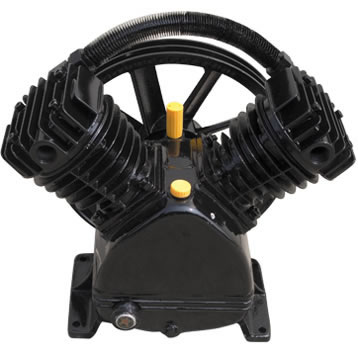

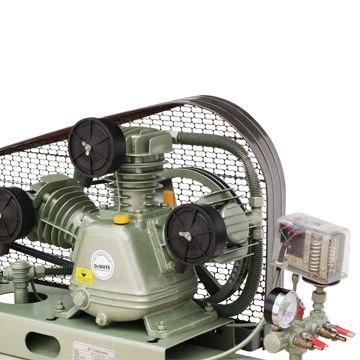

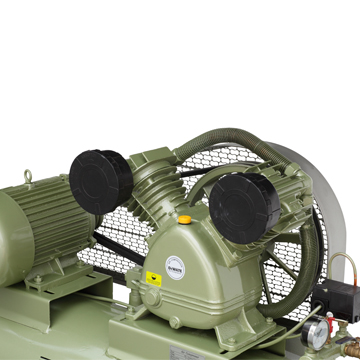

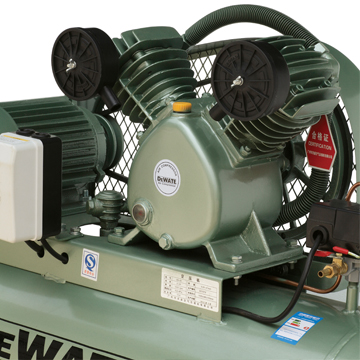

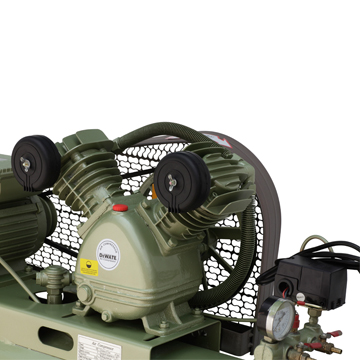

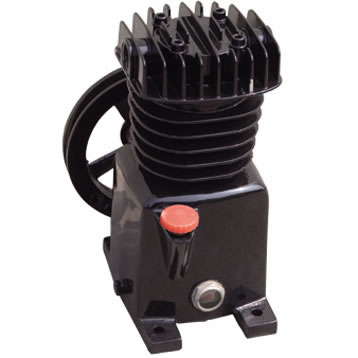

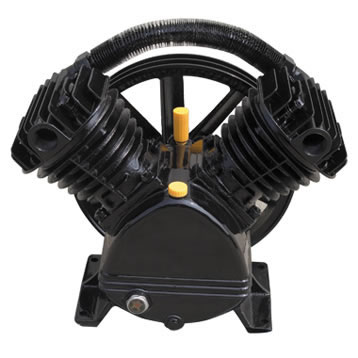

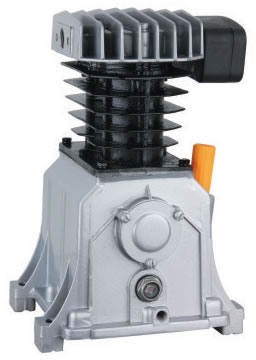

Air pump

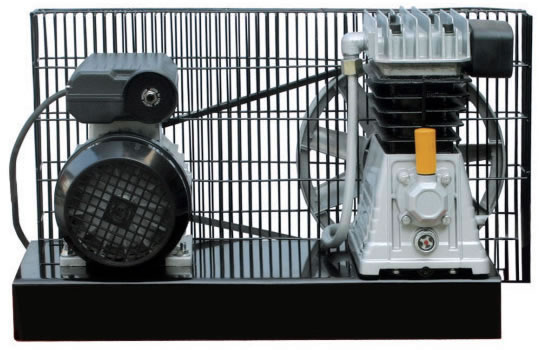

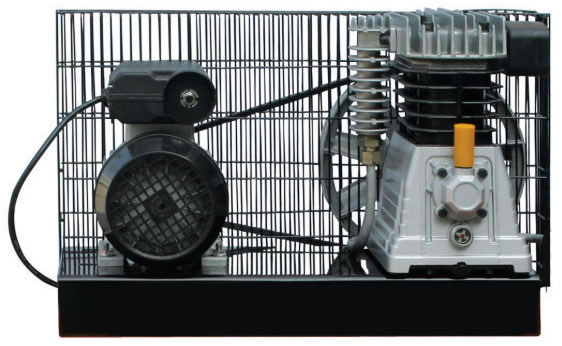

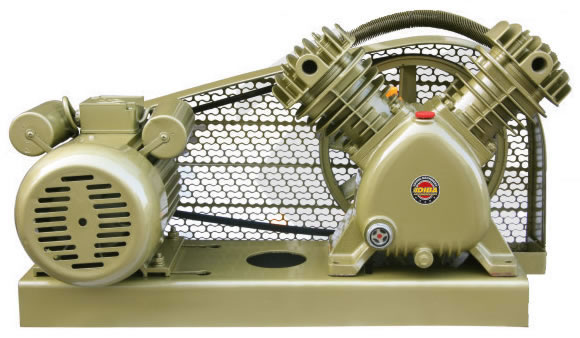

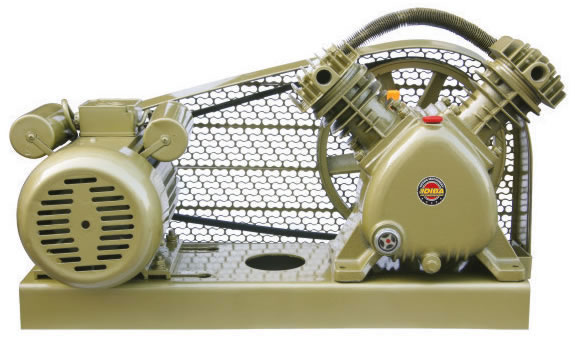

Common Type Italy Type:Compressor base plate


Package Pictures
Strong carton box Wooden crate case

Technical Specifications of Piston Air Compressor
Model MotorPower
Electricity Speed Flow rate
Cylinder
(diameter*
piece)
Working Pressure Tank Dimension
L*W*H
Weight
(KW) (HP) (V/ph/Hz) (rpm) (L/min) (CFM) (mm*pcs) (bar) PSI (L) (cm) (kg)

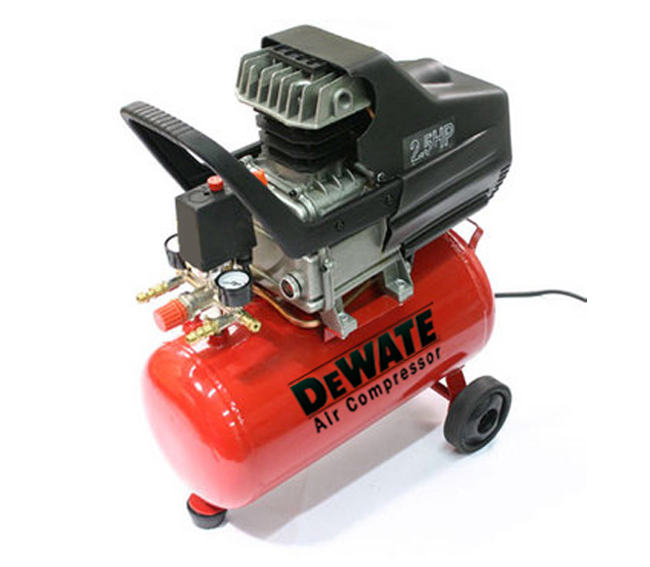

Direct type
DWT-BM25 1.85 2.5 220/1/50 2850 206 8 47*1 8 116 25 58*26*58 16
DWT-BM50 2.2 3 220/1/50 2850 206 8 48*1 8 116 50 66*30.5*62 21
DWT-FL25 2.2 2.5 220/1/50 2850 206 8 47*1 8 116 25 58*26*58 16
DWT-FL50 2.2 3 220/1/50 2850 206 8 48*1 8 116 50 66*30.5*62 21
Belt type
DWT-Z508 0.75 1 220/1/50 1300 40 2 51*1 8 116 36 70*37*66 48
DWT-V1208 1.1 1.5 220/1/50 1080 120 5 51*2 8 116 40 90*46*70 70
DWT-V1708 1.5 2 220/1/50 1080 170 6 51*2 8 116 56 100*46*75 75
DWT-V2508 2.2 3 220/1/50 1080 250 9 65*2 8 116 70 105*46*80 86
DWT-W3608 3 4 380/3/50 1080 360 13 65*3 8 116 90 120*46*85 116
DWT-W3612 3 4 380/3/50 1080 360 13 65*3 12.5 181 90 120*46*85 116
DWT-V6008 4 5.5 380/3/50 980 600 22 90*2 8 116 90 120*46*91 146
DWT-V6012 4 5.5 380/3/50 980 600 22 90*2 12.5 181 90 120*46*91 146
DWT-V6708 4 5.5 380/3/50 960 670 24 90*2 8 116 120 126*51*94 160
DWT-V6712 4 5.5 380/3/50 960 670 24 90*2 12.5 181 120 126*51*94 160
DWT-W6708 5.5 7.5 380/3/50 980 670 24 80*3 8 116 120 140*48*96 200
DWT-W6712 5.5 7.5 380/3/50 980 670 24 80*3 12.5 181 120 140*48*96 200
DWT-W9008 7.5 10 380/3/50 950 900 32 90*3 8 116 180 158*56*103 210
DWT-W9012 7.5 10 380/3/50 950 900 32 90*3 12.5 181 180 158*56*103 210
DWT-W10008 7.5 10 380/3/50 950 1000 36 90*3 8 116 230 158*56*103 320
DWT-V10512 7.5 10 380/3/50 660 1050 38 105*2 55*2 12.5 181 300 164*57*113 360
DWT-W16008 11 15 380/3/50 680 1600 57 100*3 8 116 400 167*67*123 430
DWT-W20008 15 20 380/3/50 790 2000 71 120*3 8 116 400 174*70*132 460
Italy type
DWT-2055A 1.5 2 220/1/50 1080 200
8 55*2 8 116 50 86*42*75 65
100 120*44*85 93
DWT-2065A 1.85 2.5 220/1/50 1080 250 9 65*2 8 116 50 86*42*75 67
DWT-2070A 2.2 3 220/1/50 1080 300 11 70*2 8 116 100 120*44*85 96
150 150*48*100 145
200 150*55*103 197

Note
1.Other power supplies can be customized,such as 220V/3phase/60Hz,415V/1 phase/50Hz,etc.
2.Different size tank can also be customized.

JUFENG AIR COMPRESSOR is a professional piston air compressor manufacturer based in China.We provide a broad range of products,including refrigerated air dryer,portable screw air compressor,belt drive screw air compressor,and much more.
