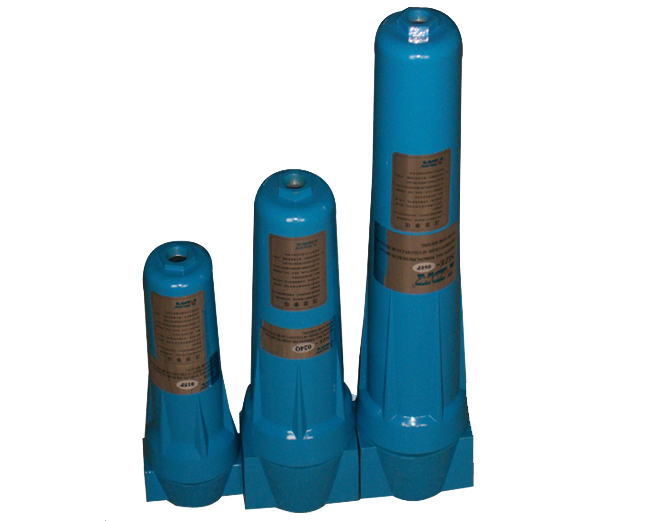

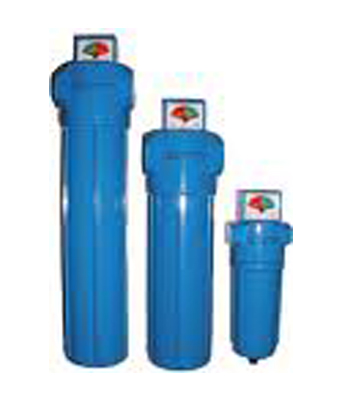

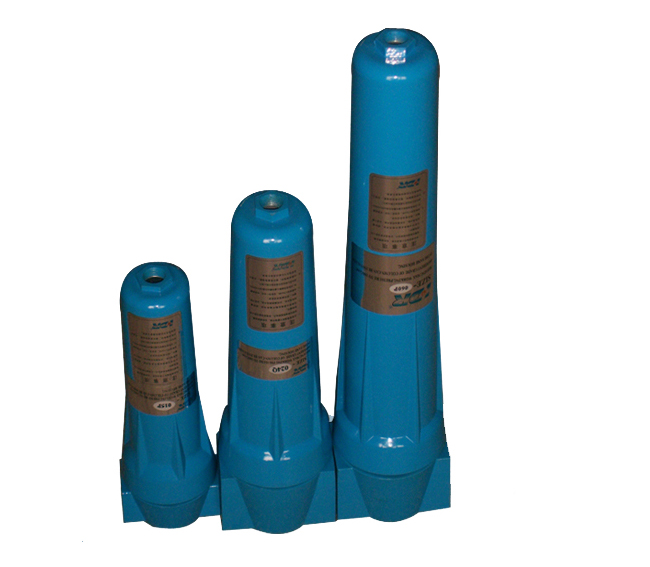

The air filter can filter out dirt,oil and water.Depending on the type of compressed air filter,we can effectively remove up to 99.9% of these impurities.

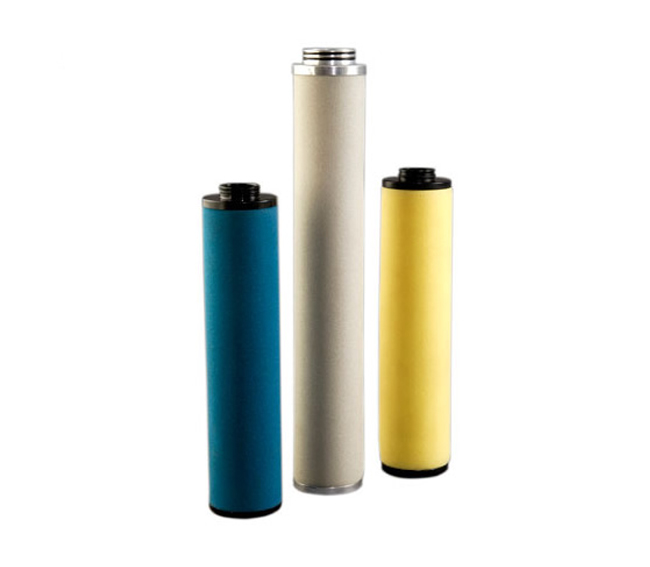

Three types of elements are available
1.A grade 3 micron pre-filter
2.B grade 1 micron separator filter
3. C grade 0.01 micron separator filter
A Grade 3 Micron Pre-Filter
This 3 micron pre-filter has a 3 micron ceramic standard compressed air filter and water separator.It removes large liquid loads and all solid particles 3 micron and larger.This air filter can be used as a separator downstream of the after cooler of point-of-use filter where heavy liquid loads are expected(air systems without after coolers or dryers)/
B Grade 1 Micron Air Line Filter
This 1 micron compressed air filter removes all liquid water,oil aerosols,and all solid particles 1 micron and larger.This ari filter can be used as a general filter for shop air,after filter for pressure wing desiccant dryers,and as a point-of-use filter on systems utilizing after coolers or dryers.
C Grade 0.01 Micron Air Line Filter
The 0.01 micron coalescing filters coalesce and remove 99.99% of oil aerosols for virtually oil free air.This air filter can be used with oil-lubricated compressors to produce oil free air for painting(spray and powder),molding for plastics,instrumentation and controls,fluid logic and air bearings.
Air Filter Grade A
Model
|
Filteration impurities |
Oil filtering cotent |
Initial pressure difference |
Maximum pressure difference |
Connecting size |
Air flow
(m³/min) |
| JF-A-007 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 3/4"～1" |
1 |
| JF-A-015 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 3/4"～1" |
1.5 |
| JF-A-024 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
2.4 |
| JF-A-035 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
3.5 |
| JF-A-060 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
6 |
| JF-A-090 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
9 |
| JF-A-120 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
12 |
| JF-A-150 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
15 |
| JF-A-240 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D110 |
24 |
| JF-A-360 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
36 |
| JF-A-450 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
45 |
| JF-A-600 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
60 |
| JF-A-900 |
3 micron |
5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D200 |
90 |
Air Filter Grade B
Model
|
Filteration impurities |
Oil filtering cotent |
Initial pressure difference |
Maximum pressure difference |
Connecting size |
Air flow
(m³/min) |
| JF-B-007 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 3/4"～1" |
1 |
| JF-B-015 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 3/4"～1" |
1.5 |
| JF-B-024 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
2.4 |
| JF-B-035 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
3.5 |
| JF-B-060 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
6 |
| JF-B-090 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
9 |
| JF-B-120 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
12 |
| JF-B-150 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
15 |
| JF-B-240 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D110 |
24 |
| JF-B-360 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
36 |
| JF-B-450 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
45 |
| JF-B-600 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
60 |
| JF-B-900 |
1 micron |
0.5 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D200 |
90 |
Air Filter Grade C
Model
|
Filteration impurities |
Oil filtering cotent |
Initial pressure difference |
Maximum pressure difference |
Connecting size |
Air flow
(m³/min) |
| JF-C-007 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 3/4"～1" |
1 |
| JF-C-015 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 3/4"～1" |
1.5 |
| JF-C-024 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
2.4 |
| JF-C-035 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
3.5 |
| JF-C-060 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 1"～ 1 1/2" |
6 |
| JF-C-090 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
9 |
| JF-C-120 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
12 |
| JF-C-150 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
G 2"～ 2 1/2" |
15 |
| JF-C-240 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D110 |
24 |
| JF-C-360 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
36 |
| JF-C-450 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
45 |
| JF-C-600 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D150 |
60 |
| JF-C-900 |
0.01 micron |
0.01 PPM |
0.1KG/CM2
|
0.7KG/CM2 |
PN16D200 |
90 |
