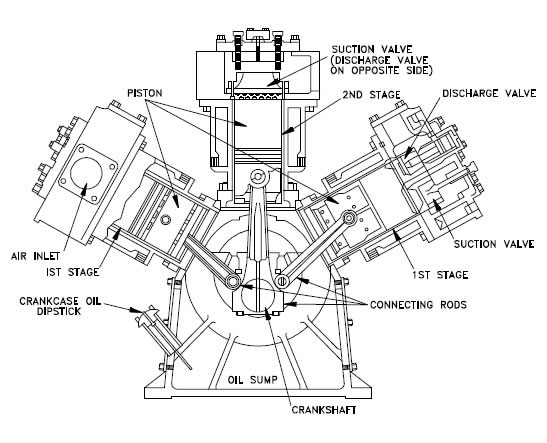

Piston/Reciprocating Air Compressors use pistons driven by a crankshaft and are positive displacement machines,meaning that they increase the successive volumes of air which is confined within a closed space and accomplishes this by a piston within a cylinder as the compressing and displacing element.
Applications of the Hi-end Piston Air Compressor
The hi-end piston air compressor is used in oil refineries,gas pipelines,chemical plants,natural gas processing plants and refrigeration plants.One specialty application is the blowing of plastic bottles made of Polyethelene Terephthalate(PET).These rugged and reliable compressors are ideally suited for the light industrial.commercial or professional user.
Built with care and attention to detail that sets all DWT series compressors apart from the competition,all models are factory tested before shipment.
Single-stage and two-stage reciprocating compressors are commercially available.
Features of the Hi-end Piston Air Compressor
1.The hi-end piston air compressor can be continuously operated for 24 hours.
2.It is reliable,easily installed and economical.
3.It has a cast iron compressor pump and a totally enclosed belt guard.
4.The hi-end piston air compressor offers industrial grade motors.
5.It offers splash lubrication.
6.The hi-end piston air compressor uses the most popular design in the market,and it is mature,reliable and easy to maintain.
7.It offers simple structure,high efficiency and is cost-effective.
8.It is made with top quality material and has exquisite workmanship.
9.It offers a powerful head design,low speed,stroke length,and a longer service life than the similar products.
10.It adopts the ring valve design and valve material imported from Japan and Sweden,Which greatly increases the performance and service life of air valve.
11.The hi-end piston air compressor uses a piston ring from Taiwan Riken that is durable and non-oil.
12.The crank shaft by high-frequency quenching,enhances the wear resistance of the product.
13.The oil separator structure design of the front cover offers low fuel consumption and in the long term keeps the body clean.
14.In volume control.there are gas and electronic automatic control types,gas and electronic dual-use type,and four types of intelligent control.Depending on the gas situation,it will automatically switch between electric control and penumatic control.
15.The piston air compressor is CE certified,and is manufactured under ISO quality management system standard.
16.We offer a one year full machine warranty. Components of the Hi-end Piston Air Compressor

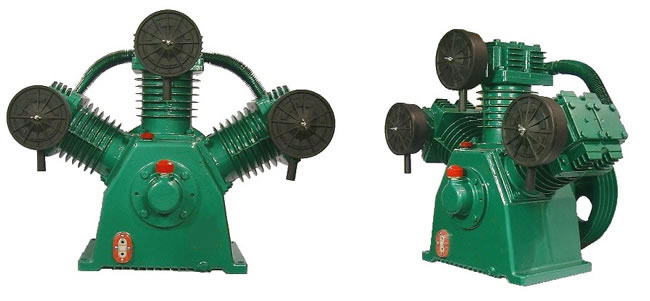

| Air pump |
Air End and spareparts |
|
|
 |
| Package Pictures |
|
| Strong carton box |
Wooden crate case |
 |
 |
Technical Specifications of the High-end Piston Air Compressor
| Model |
Motor power |
FAD |
Working pressure |
Cylinder
(diameter*pcs) |
Rotate speed |
Tank |
Size
(L*W*H) |
Weight |
| (KW) |
(HP) |
(m³/min) |
(CFM) |
(bar) |
(PSI) |
(mm*pcs)
|
(rpm) |
(L) |
(cm)
|
(KG) |
| DWT-VA-80 |
3 |
4 |
0.36 |
13
|
8 |
116 |
80*2 |
900 |
68 |
125*45*90 |
135 |
DWT-TA-80
|
4 |
5.5 |
0.53 |
19 |
8 |
116 |
80*3 |
875 |
116 |
140*50*105 |
170 |
| DWT-TA-100 |
5.5 |
7.5 |
0.67 |
24 |
8 |
116 |
100*2
|
930
|
176 |
155*60*115 |
240 |
| DWT-TA-100 |
7.5 |
10 |
1.0 |
36 |
8 |
116 |
100*3 |
860 |
230 |
165*65*130 |
294 |
| DWT-TA-120 |
11 |
15 |
1.5 |
53 |
8 |
116 |
120*3 |
800 |
320 |
180*75*145 |
390 |
Note:12bar pressure is optional.different size tank is customized.
Our company is a hi=end piston air compressor manufacturer and supplier based in China.We also offer oil free screw air compressor,variable speed screw air compressor,refrigerated air dryer,and much more. |
