The diesel air compressor is one of the most popular kinds of air compressors and a great choice for many companies and areas,especially for heavy-duty users.Unlike an electrically powered compressor,a diesel air compressor has no cord,avoiding the trouble of moving a cord along with the compressor.It does not require an electrical outlet,so you can take your diesel air compressor onto job sites such as construction sites,where there may or may not be electricity available.
Our skilled and trained systems specialists inspect each and every diesel air compressor we sell and we can also help you pick out the one best for you.
Applications The portable screw air compressor is used in highway,railway,mining,water conservancy,ship building,urban construction,energy,military and other industries.
Features of the portable Screw Air compressor 1.High Reliability,Good Adaptability 1).The portable screw air compressor offer the configuration of Cummins,Yuchai famous brand diesel engine,the latest displacement and power of the reasonable adjustment,which can meet the most severe overloading use and harsh environment of the field and lowers the fuel consumption and the operation cost. 2).It has an imported German screw host,the latest generation of asymmetric flute profile design,big rotor speed,low operation,high efficiency,low energy consumption and high performance. 3).The portable screw air compressor has a highly elastic flange coupling to ensure reliable transmission. 4).The German MANN air filter,oil filter and separator ensure the quality of the exhaust of the diesel and the compressor. 5).The portable screw air compressor comes with an Austrian HOERBIGER control system to offer 0~100% automatic adjustment on air inflo.Meanwhile,the controlsystem offers automatic adjustment on the diesel engine’s operation,so as to save diesel oil consumption. 6).It offers the plate-fin cooler coordinate design,stack up style to improve the environmental temperature,increase air exchange area,and ensure an optimum cooling effect. 7).The unit with the temperature controller,relief valve,filter clogging alarm security protection device,ensure safe and stable operation. 8).The portable screw air compressor has a standard level(with water separation) and secondary fuel filter,ensure clean fuel supply,to ensure the reliable operation of the engine. 9).The compressor is designed with a heat insulation device at the diesel engine’s exhaust outlet and heat resistant pipelines.This effectively prevent equipment body burning caused by high heat. 10).The portable screw air compressor is equipped with and air preheated.oblique fuel heater and cooling fluid such colod start-up heater.This solves difficult engine starting problems in units in low temperature,high altitude.
2.Lighter,Convenient Operation Cost is Low The portable screw air compressor is designed with andcharacterized by lightweight and small space occupation,It is portable and can be freely accessed in narrow constuction sites,effectively reducting the operation cost.
3.Easy operation and Maintenance 1).The portable screw air compressor has various imstruments and security system configuration and the operation panel for valve,all on the same side of the machine for easy operation.There are more lights to see clearly and it is equipped with an automatic stop and alarm lamp. 2).The front and rear door are spacious,making the maintenance of air filter and oil filter in each control system very convenient. 3).Overhaul of the components in the range is convenient and easy and reduces downtime and maintenance costs.
4.Humanized Design 1).The portable screw air compressor suit different traction equipment. 2).The lift stem greatly reduces assignment strength. 3).The handle and feet are convenient to maintain. 4).It has a large capacity and high strength transparent oil box for oil level observation.
5.Appearance and Corrosion Resistance 1).The shutter was covered,giving the equipment better ventilation cooling and a beautiful appearance. 2).High quality cold-rolled steel plate and baked lacquer ensure durability and excellent anticorrosion.

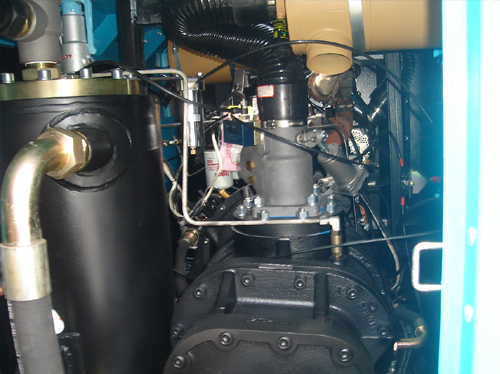

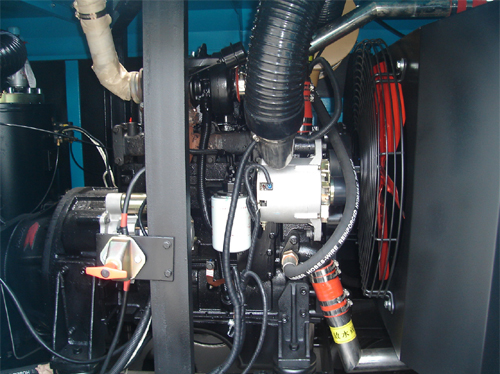

6.Good Cooling System 1).The portable screw air compressor has a complete side-by-side cooling system which improves environment adapted temperature and ensures the best cooling effect. 2).The fan is directly connected on the belt pulley of diesel engine,making it a simple and reliable structure. Internal Equipment Parts
Technical Specifications of the Diesel Engine DrivenPotalbe Screw Air compressor
Model
|
FAD
|
Pressure |
Air End
|
Diesel Engine |
Weight |
Dimension L*W*H |
Wheel |
(m³ /min)
|
(cfm) |
(Mpa)
|
(psi) |
(kg)
|
(mm)
|
(pcs) |
DWT-6/7
|
6 |
212 |
0.7 |
102 |
SKY126MM-A |
YCD4B22-95,70KW |
1400 |
3550*1800*1800 |
2 |
DWT-6/12
|
6 |
212 |
1.2 |
174 |
SKK04F |
YC4D95Z-K20,70KW |
1400 |
3550*1800*1800 |
2 |
DWT-7/7 |
7 |
247 |
0.7 |
102 |
SKK03LF |
YCD4B22 |
1400 |
3550*1800*1800 |
2 |
DWT-7/10 |
7 |
247 |
1 |
145 |
SKK04F |
YC4D95Z-K20,70KW |
1400 |
3550*1800*1800 |
2 |
DWT-7.5/7 |
7.5 |
265 |
0.7 |
102 |
SKK04F/ SKY126LM-A |
YC4D80-K11,80KW |
1850 |
3750*1920*1900 |
2 |
DWT-8.0/14 |
8.5 |
300 |
1.4 |
203 |
SKY148MH-C |
4BTA3.9-C125,93KW |
1900 |
3750*1920*1900 |
2 |
DWT-9/7 |
9 |
318 |
0.7 |
102 |
SKK04F/ SKY126LM-A |
YC4D95Z-K20,70KW |
1850 |
3750*1920*1900 |
2 |
DWT-9/14.5 |
9 |
318 |
1.45 |
210 |
SKY148LH |
YC6B150Z-K20,110KW |
1850 |
3750*1920*1900 |
4 |
DWT-10/7 |
10 |
353 |
0.7 |
102 |
SKK-04G/ SKY148MM-A |
YC4D95Z-K20,70KW |
1900 |
3750*1920*1900 |
4 |
DWT-10/10
|
10 |
353 |
1 |
145 |
SKK-04G/ SKY148MM-A |
4BTA3.9-C125,93KW
|
1900 |
3750*1920*1900 |
4 |
DWT-10/13 |
10 |
353 |
1.3 |
189 |
SKK05LF/ SKY148LH
|
YC6B150Z-K20,110KW |
1900 |
3750*1920*1900 |
4 |
DWT-11/13 |
11 |
388 |
1.3 |
189 |
SKY148LH |
6BT5.9-C180 |
1900 |
3750*1920*1900 |
4 |
DWT-12/7 |
12 |
424 |
0.7 |
102 |
SKK05LF/ SKY148LM-A |
YC6B150Z-K20,110KW |
2050 |
3970*1940*1900 |
4 |
DWT-12/7A
|
12 |
424 |
0.7 |
102 |
SKY148LM-A |
YC4A180E-T21 |
2050 |
3970*1940*1900 |
4 |
DWT-12/7B |
12 |
424 |
0.7 |
102 |
SKY148LM-A |
4BTA3.9-C125,93KW |
2050 |
3970*1940*1900 |
4 |
DWT-12/10 |
12 |
424 |
1 |
145 |
SKK05LF/ SKY148LM-A |
YC6B150Z-K20,110KW |
2380 |
3970*1940*1900 |
4 |
DWT-12/12 |
12 |
424 |
1.2 |
174 |
SKY148LH
|
6BT5.9-C160,118KW |
2380 |
3970*1940*1900 |
4 |
DWT-13/17 |
13 |
459 |
1.7 |
247
|
SKY1317 |
6CTA8.3-C215,158KW |
2380 |
3650*1520*2350 |
4 |
DWT-13/13 |
13 |
459 |
1.3 |
189 |
SKY170LH
|
6BTA5.9-C180,132KW |
2750 |
3350*1650*2500 |
4 |
DWT-13/13A |
13 |
459 |
1.3 |
189 |
SKY170LH
|
YC6A190Z-T10,140KW |
2750 |
3350*1520*2350 |
4 |
DWT-15/13 |
15 |
530 |
1.3 |
189 |
SKY170LH
|
WD415.23-230,166KW |
3350 |
3350*1650*2500 |
4 |
DWT-15/13A |
15 |
530 |
1.3 |
189 |
SKY170LH
|
YC6A240-20,177KW
|
3350 |
3350*1650*2500 |
4 |
DWT-16/13 |
16 |
565 |
1.3 |
189 |
SKY170LH
|
6CTA8.3-C215,158KW
|
3700 |
3650*1800*2500
|
4 |
DWT-16/17 |
16 |
565 |
1.7 |
247 |
SKY1617 |
6CTA8.3-C260,194KW |
3700 |
3650*1800*2500
|
4 |
DWT-17/7 |
17 |
600 |
0.7 |
102 |
SKY170LH |
6BTA5.9-C180,132KW |
3050 |
3350*1650*2500 |
4 |
DWT-17/14.5 |
17 |
600 |
1.45 |
210 |
SKY170LH |
6CTA8.3-C260,194KW |
3700 |
3650*1800*2500 |
4 |
DWT-18/17 |
18 |
636 |
1.7
|
247 |
SKK10H |
6CTA8.3-C260,194KW |
3700 |
3650*1800*2500 |
4 |
DWT-21/20
|
21 |
742 |
2.0
|
290
|
SKK11M |
6LTAA8.9-C235,239KW |
4500 |
4450*1950*2650 |
4 |
DWT-21/13 |
21 |
742 |
1.3
|
189 |
SKK08LF |
WD615.45 |
4500 |
4450*1950*2650 |
4 |
DWT-21/13A |
21 |
742 |
1.3
|
189 |
SKK08LF |
YC6M340L-K20,250KW |
4500 |
4450*1950*2650 |
4 |
DWT-21/13B |
21 |
742 |
1.3
|
189 |
SKK08LF |
6LTAA8.9-C325 |
4500 |
4450*1950*2650 |
4 |
DWT-22/8 |
22 |
777 |
0.8 |
116 |
SKY192LM |
6CTA8.3-C260,194KW |
4000 |
4250*1950*2500 |
4 |
DWT-22/13 |
22 |
777 |
1.3 |
189 |
SKY192LM |
YC6M340L-K20,250KW |
4500 |
4250*1950*2500 |
4 |
DWT-22/13K |
22 |
777 |
1.3 |
189 |
SKY192LM |
6LTAA8.9-C235,239KW |
4500 |
4250*1950*2500 |
4 |
DWT-22/13S |
22 |
777 |
1.3 |
189 |
SKY192LM |
WD615.46,266KW
|
4500 |
4250*1950*2500 |
4 |
DWT-24/20 |
24 |
848 |
2.0 |
290 |
SKK11M
|
6CTA8.9-C360 |
4500 |
4250*1950*2500 |
4 |
DWT-25/10 |
25 |
883 |
1.0 |
145 |
SKK08LF |
WD615.46 |
4500 |
4250*1950*2500 |
4 |

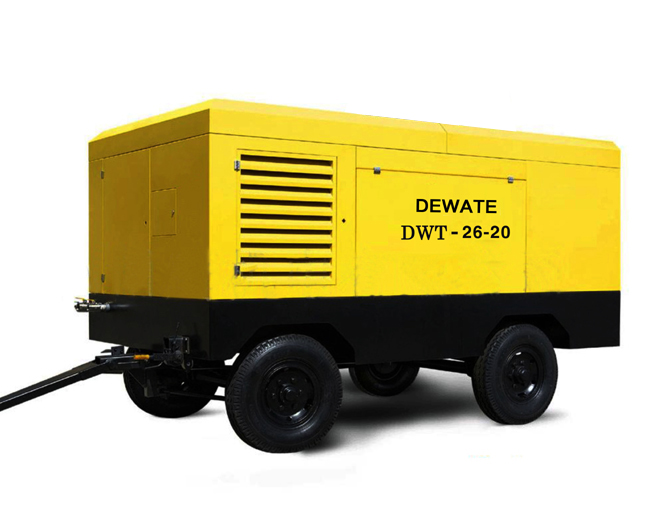

DWT-26/20
|
26 |
918 |
2.0 |
290 |
SKK11H |
YC6M390-20 |
4850 |
4450*1950*2650 |
4 |
DWT-27/10 |
27 |
953 |
1.0 |
145 |
SKY220MM |
YC6M340-20 |
5000
|
4450*1950*2650 |
4 |
DWT-27/20 |
27 |
953 |
2.0 |
290 |
SKK11H |
NTA855-S013480 |
5000 |
4450*1950*2650 |
4 |
DWT-32/10 |
32 |
1130 |
1.0 |
145 |
|
YC6M390-20 |
5200 |
4600*1950*2850 |
4 |
JUFENG AIR COMPRESSOR is a China-based portable screw air compressor manufacturer and supplier.We also provide oil free silent air compressor,Hi-end piston air compressor,refrigerated air dryer,belt driven screw compressor,and much more. |
