Our oil free silent air compressor is ideal for those applications where low maintenance and ultra quiet,oil free air is essential.The high efficiency filters in the compressor provides clean and improved air quality with less maintenance.The anti vibration mounting is simple to install and helps reduce vibration transmission.
Applications of the Oil Free Silent Air Compressor
Our oil free silent air compressor is well suited for use with scientific instruments,door controls,auto clave locks,stapling,picture framing,food packaging,pneumatic controls,hospital ventilators,drink dispensing,and as a portable andrugged air supply for many diverse requirements.Our air compressor produces very little noise and can be used for various industrial and commercial purposes,includeing:
Laboratories:Chemotherapy,spectroscopy,theometers,viscometers,
particle size analyzers,optical tables,microscopes,generators,
glassware,etc
Medical and Healthcare Center:Blood analyzers,dentist,ENT doctors,aspirators,x-ray machines,physiotherapy,respiratory equipment,tire inflation,etc.
Electronics:Antenna,electronic industry,gas pipelines,etc.
Food and Water Service Equipment:Bakeries,dispensers,food packaging and water treatment.
Miscellaneous:Cosmetic industry,plastic industry,shoe industry,etc.
Features of the Oil Free Silent Air Compressor
1.The oil free silent air compressor is available in small and middle size,lightweight and portable.
2.It is fully automatic,easy to handle and safe.
3.The oil free silent air compressor offers extra heavy duty construction and simple design,offering durability with optimum performance.
4.It has a lower running speed at reduced noise levels and a longer life.
5.It offers easier starting and improved reliability.
6.It is totally oil free,providing clean air with less maintenance.
7.The oil free silent air compressor has a high efficiency suction filter which improves air quality and reduces sound levels.
8.It offers special anti vibration mountings with simple installation and reduced vibration transmission.
9.A dry air version fitted with and adsorption dryer is availabel for total dry air for critical applications.
10.The air receivers of the oil free silent air compressoraire internally coated to protect against corrosion and ensure a longer life.
11.The air compressor is CE certified andmanufactured under ISO standard.
12.We offer one year full machine warranty
| Components of the Oil free Silent Air Compressor |

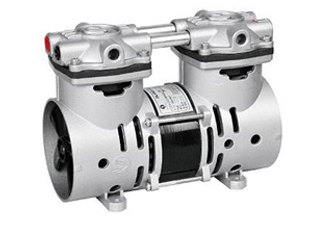

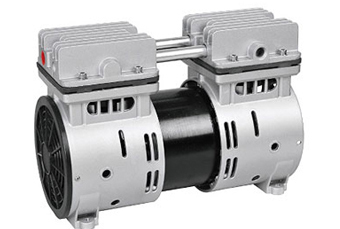

Air Pump |
 |
 |
Air pump
Technical Specifications of the Silent Oil Free Air Compressor
| Model |

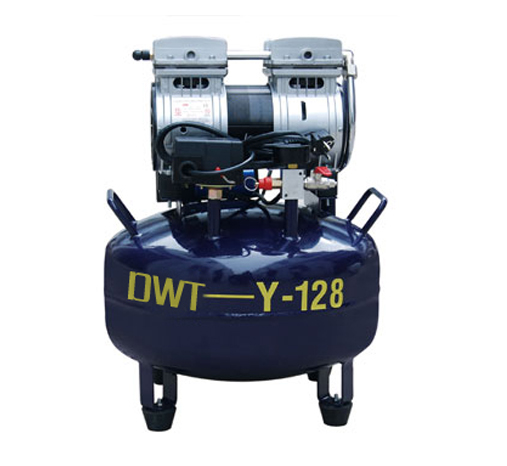

DWT-Y-128 |
DWT-Y-228 |

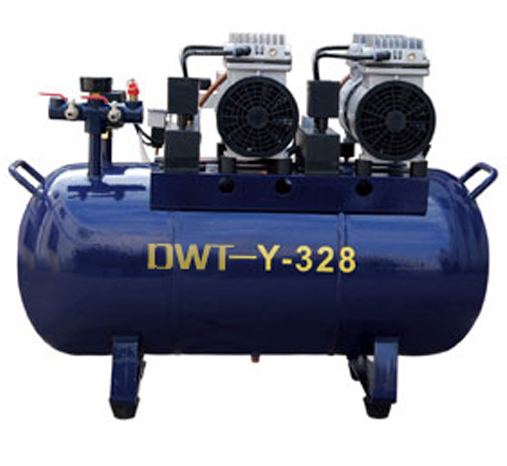

DWT-Y-328 |

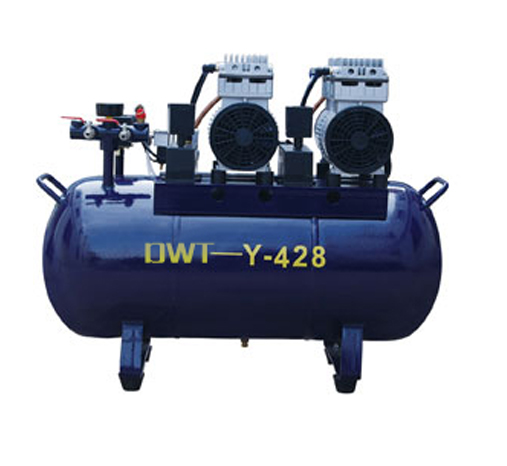

DWT-Y-428 |

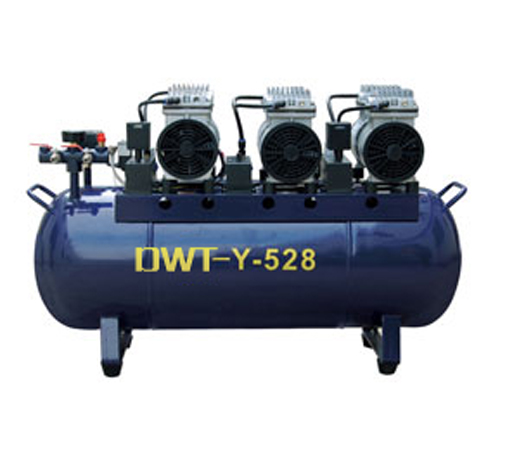

DWT-Y-528 |

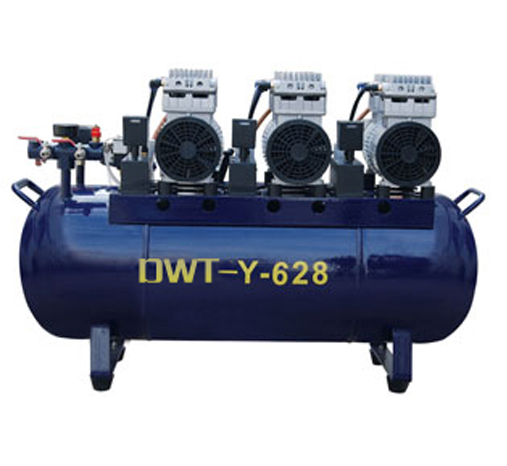

DWT-Y-628 |

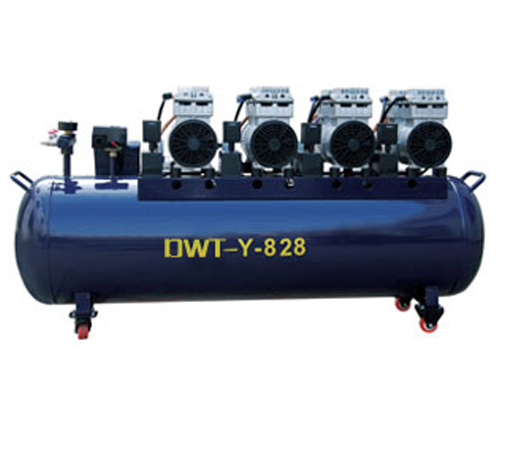

DWT-Y-828 |

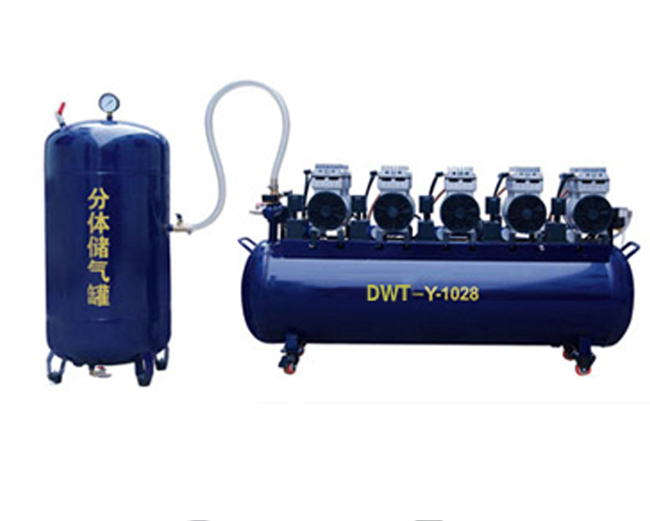

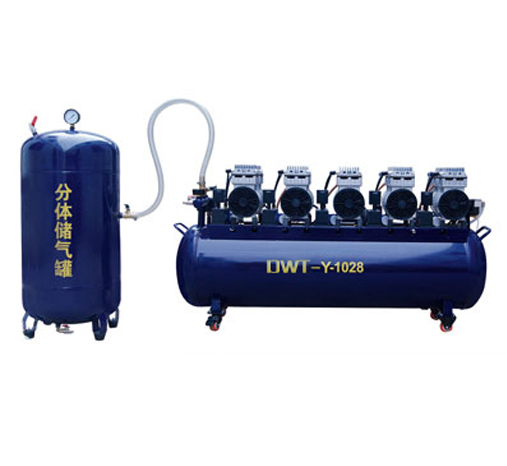

DWT-Y-1028 |
| Voltage |
(V) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
| Frequency |
(Hz) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
| Power |
(W) |
550 |
850 |
550×2 |
850×2 |
550×3 |
850×3 |
850×4
|
850×5 |
Air flow
|
(L/min) |
73 |
100 |
145 |
210 |
300 |
380 |
450 |
560 |
| (CFM) |
2.6 |
3.5 |
5.1 |
7.4 |
10.6 |
13.4 |
16 |
20 |
| Noise |
(dB) |
50-58 |
53-60 |
55-60 |
55-60 |
55-60 |
55-60 |
60-70 |
60-70 |
| Speed |
(rpm) |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
| Tank |
(L) |
25 |
31 |
65 |
65 |
135 |
135 |
180 |
180 |
| Max pressure |
(Mpa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
| (bar) |
116
|
116
|
116
|
116
|
116
|
116
|
116
|
116 |
| Size |
(cm) |
44×44×65 |
45×45×71 |
86×52×83 |
86×52×83 |
113×39×66 |
113×39×69 |
135×37×69 |
135×37×69 |
| N.W. |
(kg) |
24 |
27.5 |
47.5
|
53 |
63 |
84 |
94.5 |
107 |
