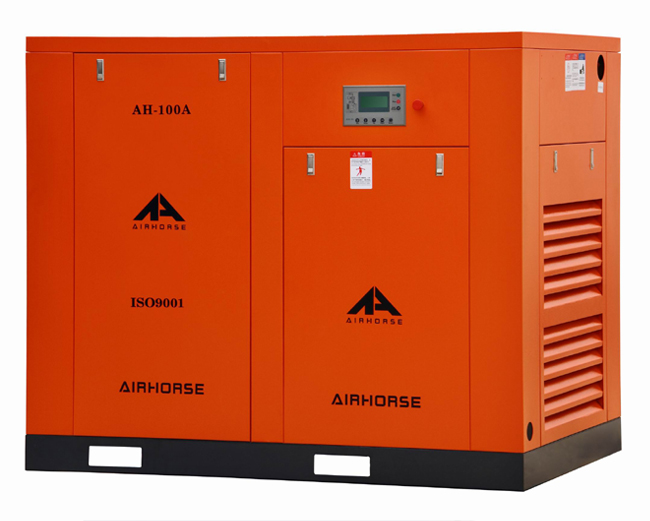

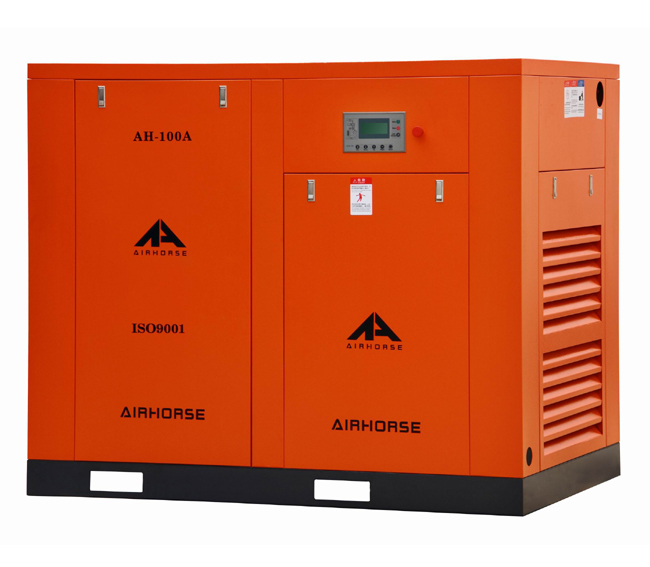

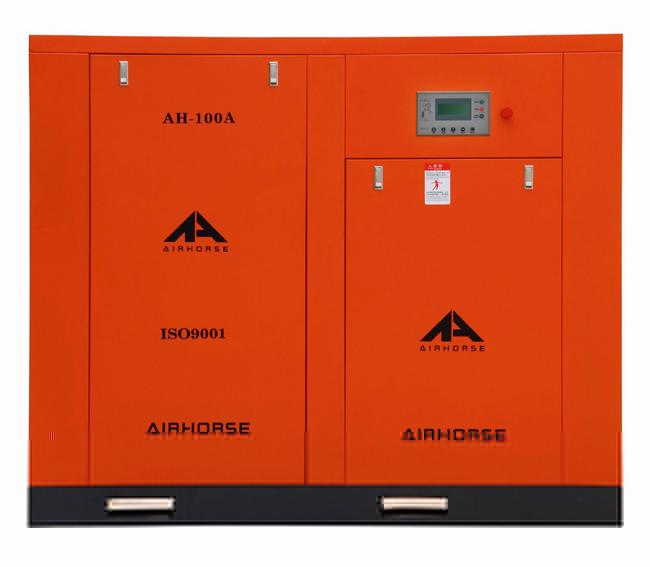

New Type,GHH Air End,VSD(Variable Speed) Available
The direct drivn screw compressor uses GHH air end,which provides high-quality air you can rely on to avoid costly downtime and production delays.The robust design ensures your processes will function continuously even in the harshest conditions such as temperature up to 55℃.The direct driven screw air compressors are easy to install and use,require minimal on-site installation work,and are simple to operate and maintain.
Features of the Direct Driven Screw Compressor

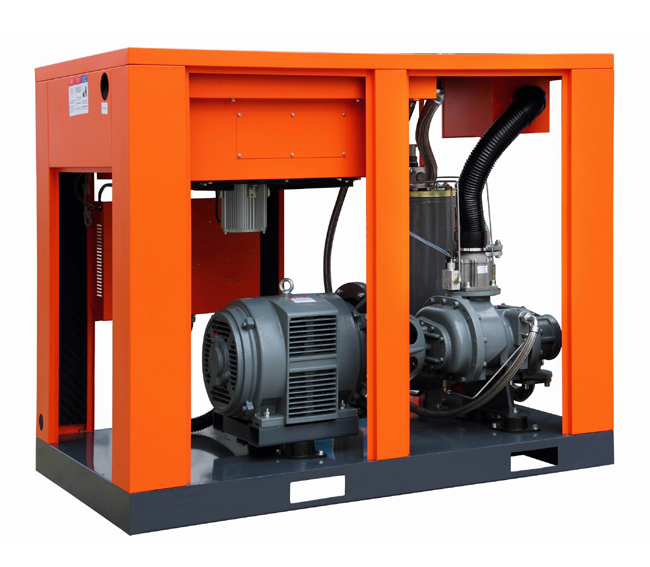

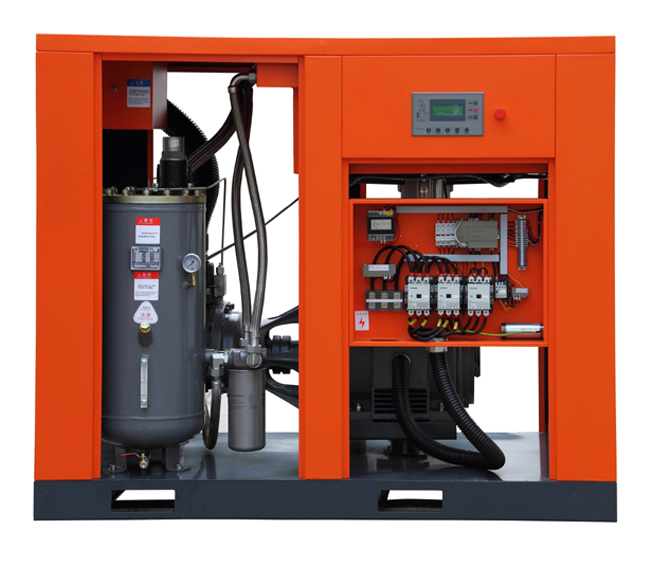

1.A direct and unrestricted connection between the GHH air end functions without incurring unnecessary energy wastage.
2.A well balanced power to air consumption ratio kept throughout the loading phase grants the machine high efficiency.
3.The fully enclosed noise reduction design minimizes sound pollution,restricting ambient noises below a threshold of 68 decibels.
4.Save power with the intelligent energy savings design.It automatically adjusts power consumption based on real-time electric power readings to eliminate unnecessary energy consumption caused by load-free running.
5.The streamlined exterior of the enclosure is bright orager by design and projects vitality.
6.ALED display multi-functional electrolic controler provids a convenient,user-friendly interface.
7.The certified machine isassembled with strict compliance to CE and ISO9001 standards.
8.We offer a one year warranty for the machine and a three year standalone warranty for the air end.

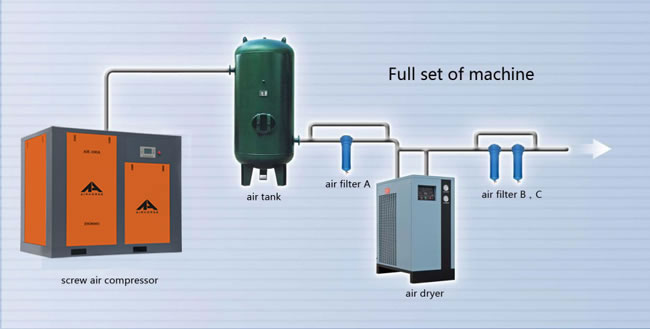

9.A modifled voltage service is provided with the purchase of the machine to accommodate various power supply standards found in different countries. Full set of machine
| Item |
Parts |
Brand |
| 1 |
Air end |
GHH (Germany origin) |
| 2 |
Intake Valve |
Hoerbiger (Austria) |
| 3 |
Solenoid Valve |
CEME (Italy) |
| 4 |
Temperature sensor |
Hoerbiger (Austria) |
| 5 |
Pressure sensor |
Huba original (from Switzerland) |
| 6 |
Motor |
Dongguan Motor |
| 7 |
Coupling |
Germany KTR |
| 8 |
Thermostat Valve |
Italy VMC |
| 9 |

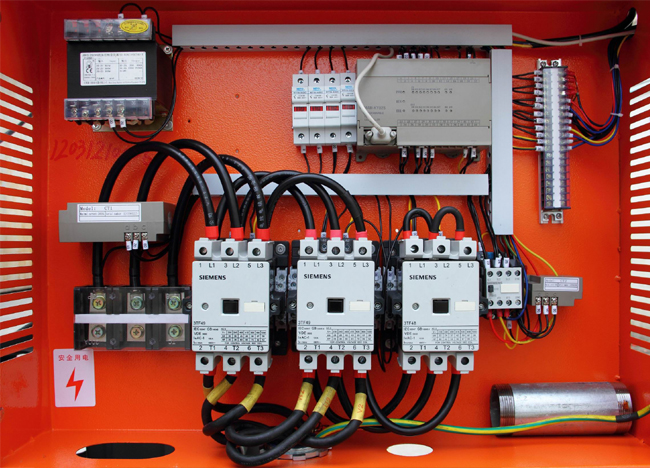

PLC |
Schneider Electric (France) |
| 10 |
Minimal Pressure Valve |
Hoerbiger (Austria) |
| 11 |
Air filter element |
Germany MANN |
| 12 |
Oil filter element |
Germany MANN |
| 13 |
Oil separator elemen |
Germany MANN |
| 14 |
Bearing |
Sweden SKF |
| About 80% of the screw compressor spare parts we use are world famous brands. |
Technical Parameters of the GHH Air End Screw Air Compressor(Belt-Driven Type)
| Model |
AH-30A |
AH-50A |
AH-75A |
AH-100A |
AH-120A |
AH-150A/W |
AH-175A/W |
AH-200W |
AH-250W |
AH-300W |
AH-350W |
Freee air
compressor/Discharge pressure(m³ /min/Mpa) |
3.8/0.7
3.6/0.8
3.2/1.0
2.8/1.2
|
6.8/0.7
6.2/0.8
5.6/1.0
4.9/1.2 |
10.0/0.7
9.1/0.8
8.5/1.0
7.6/1.2
|
13.5/0.7
12.6/0.8
11.2/1.0
10.0/1.2
|
16.1/0.7
15.0/0.8
13.8/1.0
12.3/1.2 |
21/0.7
19.8/0.8
17/1.0
15.3/1.2 |
25.2/0.7
24/0.8
21/1.0
18.3/1.2 |
28.7/0.7
27.6/0.8
24.6/1.0
21.5/1.2 |
32.0/0.7
30.5/0.8
27.5/1.0
24.8/1.2 |
36.7/0.7
34.5/0.8
30.2/1.0
27.8/1.2 |
42.0/0.7
40.5/0.8
38.1/1.0
34.6/1.2 |
No.of compression stage
|
single stage |
| Ambient temprerature |
-5--+45℃ |
| Cooling Model |
Air --Cooling |
Air-Cooling&Water-Cooling |
| Discharge temperature (℃) |
Ambient temperature+15°℃ |
| Lubricant (L) |
18 |
30 |
65 |
90 |
110 |
| Noise Level (Db) |
68±2 |
72±2 |
75±2 |
72±2 |
| Drive method |
Direct Driven |
| Electricity (V/ph/Hz) |
380/3/50 |
| Power (KW) |
22 |
37 |
55 |
75 |
90 |
110 |
132 |
150 |
185 |
220 |
250 |
| Starting method |
Y-△Starter |
Dimension:length/
width/height (mm) |
1380×
850×
1160 |
1600×
1000×
1360 |
2100×
1250×
1700 |
1900×1615×1730 |
Air-Cooling:3000
Water-Cooling:2500
Air-Cooling:1620
Water-Cooling:1620
Air-Cooling:1860
Water-Cooling:1840 |
2800×
1800×
1900 |
3300×
1900×
1950 |
|
|
| weight (kg) |
680 |
1060 |
1880 |
1980 |
2100 |
2900 |
3500 |
3900 |
4200 |
4600 |
5000 |
As a specialized direct driven screw compressor manufacturer based in China,we also offer tank mounted screw compressor,belt drive screw air compressor,refrigerated air dryer,air filter,and much more. |
