 Adsorption Air Dryer Home > products > Adsorption Air Dryer



We can help you find the most suitable machines for your needs.

As quality air from an oil-free air compressor is the requirement for your application,dry air is equally desirable.Air dryers are designed for offering dry air.For a quality end product and reliable production process,DeWATE offers the unique range of adsorption air dryer.

The heatless adsorption air dryer is energy-saving,compact,lightweight,esy to install,and steady-function.Due to its limitation on the water-elimination principle,it is commonly used as the pre-processor of the regeneration dryer.

The desiccant can adsorb the water in the compressed air selectively,which principle the regeneration dryer used;thus,to dry the compressed air,compared with the refrigeration compressed air dryer of ideal pressure dew point -2°C~-10°C,the heatless adsorption air dryer can reach the pressure dew point of -20°C~-40°C and even -70°C if specially designed.

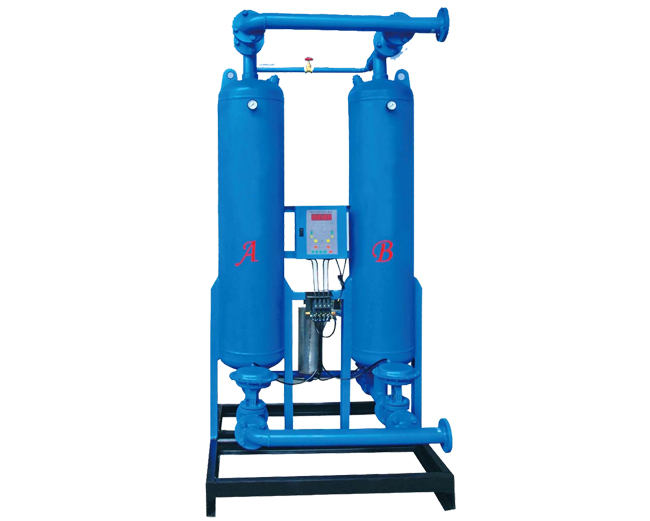

The DeWATE series heatless adsorption air dryer has a twin-tower structure,and offers steady function,cost-saving and easy installation.

Quality Guarantee
1: Strictly designed and tested according to the industry standard and ISO9001-2000 and CE system.
2: Protection measurements in design
Patent design of the regeneration tower: It adopts the reasonable air flow distribution and those support small balls to guarantee a steady outlet dew point.
Good-quality pneumatic valve/butter fly valve and control valve are used to ensure the steady and reliable performance.
The reasonable structure is designed to lessen the pressure drop and save the cost
The advanced and thorough control measurement can guarantee the steady outlet dew point and also can save the total energy-cost
3:Promise on production and test
The working flow quality and the product quality of the adsorption air dryer are strictly controlled.


Technical Specifications of the Heatless Adsorption Air Dryer
Item Air Flow Max Pressure Pressure Dew Point Dryer Weight Kg In/OutletDiameter PT Dimention(mm)
M³/Min CFM Bar -40°C Length Width Height
DWT-10
1.5 53 10 -40°C 28 G-3/4" 700
650 1480
DWT-15
2 70 10 -40°C 40 G-1" 700
680 1600
DWT-20
2.6 92 10 -40°C 55 G-1" 750
700 1550
DWT-30
3.8 135 10 -40°C 90 G-1.2" 800 750 1670
DWT-40
5.2 185 10 -40°C 125 G-1.5" 1000 800 1900
DWT-50
6.8 240 10 -40°C 155 G-1.5" 1000 900 1900
DWT-60
8.5 300 10 -40°C 200 G-1.5" 1100 900 2100
DWT-75
11 388 10 -40°C 250 G-2" 1100 1300 2200
DWT-100
14 495 10 -40°C 305 G-2.5" 1100 1300 2200
DWT-125 17 600 10 -40°C 345 DN65"
1100 1300 2200
DWT-150 22 778 10 -40°C 385 DN65"
1250 1350 2400
DWT-180 25 885 10 -40°C 457 DN65"
1300 1350 2450
DWT-200 28 988 10 -40°C 530 DN80"
1350 1450 2450

We are an adsorption air dryer manfactuer and supplier based in China.We provide various types of products such as air filter,oil free screw air compressor,and variable speed screw air compressor.
